E & I Products
Control Valve
Control valve is a valve used to control fluid flow by varying the size of the flow passage as directed by a signal from a controller. This enables the direct control of flow rate and the consequential control of process quantities such as pressure, temperature, and liquid level.
We can supply control valves as per customer needs.
- SIL 3 certified.
- Type of valve: Globe, butterfly and Ball type
- Type of actuation: Electric, Hydraulic or Pneumatic as per customer needs
- Special feature: PFA lined, Bellow sealed, high temperature application, Steam service, cryogenic service
- Materials: Carbon steel, SS, DSS, SDSS, Ni alloys, Cladded etc.
- Two-way, Three-way type Globe control valves
- Sizes from ½” to 36” and pressure upto #2500
- Quick delivery in emergency.
On/Off Valves
On/off valves, also known as shut-off valves, are a type of flow control valve that are used to start or stop the flow of a fluid through a pipe or system.
- The common type of valves used as on / off valves are Ball valves and Butterfly valves.
- These can be metal seated, soft seated depending on service conditions.
- We can supply double/ triple offset Butterfly valves
- We can supply valves as per client requirements with valves & actuators from same manufacturer or Actuators as per client requirements.
SBB & DBB Valves
- Monoflange valves, Slimline valve, Single Block and Double Block valves as per client requirements.
- Size ¼”to 3” and pressure class upto 2500#
- Needle valves from ¼”to 2” sizes with 10,000 PSI pressure.
- Material: Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex and Super Duplex Stainless Steel, Ni alloy Steel etc.
- End connections Flanged, Threaded, Welded etc.

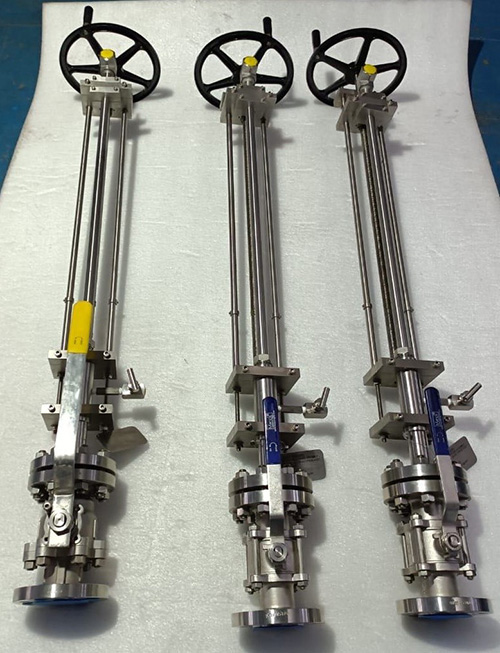

Chemical Injection Quills
- Type: Tee Type, Retrievable, Non-retrievable, Access Fitting
- Material of Construction: Carbon steel, Stainless Steel, Duplex steel, Super Duplex Stainless Steel, Hast Alloy, Inconel Alloy, Special Alloy.
- Operating Pressure: 0 - 250 Bar Max.
- Design Temp: -20℃ to 200℃
- Maximum Pipe Line Size: designed upto 40”
- Retrieval Tool Overall Length: designed as per customer requirement
- Retrieval Tool: retrieval tool for an injection quill is specifically engineered to eliminate the need to depressurize or divert the process line fluid while retrieving the quill.
- Injection Quill with Access Fitting & Shut-Off Valve
- Injection Quill with Access Fitting & Inlet Flanged
- Injection Quills with Double Block & Bleed Valve
- Injection Quill with Access Fitting
OFM
Focus 2.0 Model utilizes patented laser technology to measure gas flow by sensing the velocity of microscopic particulates naturally occurring in gas streams.
- Temperature - Processor: -40 to +50 °C (-40 to +122 °F), Probe: -40 to +120 °C (-40 to +248 °F)
- Maximum Process Pressure: 300 psig (20 barg)
- Pipe Diameter: 4” to 36”
- Probe Diameter: 19.1 mm (0.75 inches)
- Fibre Optic Extension Cable: Silicone jacketed flexible armored cable (with 10, 25, and 50m length)
- Wetted Materials: Meter body-316L stainless steel
- Optical Windows: borosilicate glass
Flowmeters
A flow meter (or flow sensor) indicates the amount of liquid, gas, or vapor moving through a pipe by measuring linear, non-linear, mass, or volumetric flow rates.
There are various types of flowmeters based on the technology used to measure the media flowing through a pipeline, including Ultrasonic Flowmeters, Mechanical Flowmeters, Electromagnetic Flowmeters, and Vortex Flowmeters. We can supply flowmeters according to client requirements.
Ultrasonic Flowmeter: This non-contact instrument measures liquid flow and is largely unaffected by the medium’s parameters. It’s suitable for measuring flows of strongly corrosive, non-conductive, and other challenging mediums.
Electromagnetic Flowmeter: Known for precision and performance, these flowmeters are accurate, user-friendly, and available in various sizes from millimeters to meters.
Vortex Flowmeter: These instruments measure the volumetric flow of liquids, gases, and steam in a full pipe state and are used across various industries for different phases of process fluids.
Mechanical Flowmeter: Ideal for outdoor fluid measurement without a power supply, these flowmeters handle high-temperature steam, high-viscosity crude oil, and are used in petroleum, chemical, metallurgy, food industries, and municipal water management. Size ranges from DN 25-300 with flow rates of 1020-17500 m3/h.
Switch Gears
In an electric power system, a switchgear is composed of electrical disconnect switches, fuses or circuit breakers used to control, protect and isolate electrical equipment. Switchgear is used both to de-energize equipment to allow work to be done and to clear faults downstream.
Electrical switchgear regulates, protects, and isolates a power system with a variety of controls housed in a metal enclosure. We can supply switch gears as per customer needs which includes
- Gas-insulated switchgear
- Air-insulated switchgear
- Shielded solid switchgear
- High Voltage, Medium voltage switch gears
Transformers
A transformer is a device used in the power transmission, distribution of electric energy. The transmission current is AC. It is commonly used to increase or decrease the supply voltage without a change in the frequency of AC between circuits. We offer all varieties of transformer which includes
- Oil Filled Transformers
- Dry Transformers
- Distribution and Power Transformers.
- Step-up and Step-down transformer
- High voltage transformers that include 400kv voltage level and 1000MVA capacity.
Cables
- High voltage power cables upto 220kV
- Overhead Conductor
- Power & Control cables
- Aluminum Alloy Conductors
- Ship board cable
- Fire safe cables
- Railway cable
- Cable and wire electrical equipment
- Cable accessories
- Submarine cables
- Mine cable
- PVC insulated cables
- Oil platform cable
