Mechanical Products
Pipeline (Line Pipes)
Solid CRA Line Pipes
- Material: DSS, SDSS, NI ALLOY
- Certification: API 5LC certified, DEP Compliance, PDO SP compliance
- Manufacturing process: SEAMLESS, WELDED (Autogenous/ Automatic), JCO
- Leading Supplier for CRA line pipes in Oman.
- Over a decade of Experience.
| Type of Pipes | Size mm | Size Inches | Wall Thickness |
| Seamless | 50 – 200 mm | 2” – 8” | Upto 32 mm |
| Welded | 150 – 900 mm | 6″ – 36″ | Upto 65 mm |
Cladded Line Pipes
Cladded Line Pipes with API 5LD certification
- Metallurgical hot roll bonded.
- Weld Overlayed pipes, fittings, spools.
- With full NDT such as AUT, PAUT, PT.
- Weld overlay Cladding material: SS, Ni Alloys
| Type Of Pipes | Size Inches | Wall Thickness | Remark |
| Weld Overlayed | 6” – 48” | 8 mm TO 80 mm | Backing pipes Grades Gr B, from X42 to X80. Welding Consumable: ER309LMo, ER316L, ERNicRmO-3, ERNiFeCr-1 etc. |
| Mechanically Lined/Bonded | 3” – 24” | 7 mm to 35 mm | Backing pipes Grades Gr B, from X42 to X80. Line Material Grade: 3.4L, 316L, 317L, UNS 31254, UNS N08825, UNS N08904, UNS N06625 |
| Hot Roll Bonded (Metallurgically Bonded) | 12″ – 64″ | 8 mm TO 80 mm | Material combination CS+304/316L; CS+ N08825; CS+N06625; CS+ N10276 |
Carbon Steel Line Pipes
API 5L & ISO 3183 Certified
- Seamless
- Welded -HFW/ERW, L-SAW
- Welded - Helical/Spiral -SAW
- NDT with DRT, UT, Eddy Current, PT.
| Type Of Pipes | Size mm | Size Inches | Wall Thickness | |
| Seamless | 50 – 400 mm | 2” – 16” | Upto 80 mm | |
| HFW/ERW | 150 – 600 mm | 6″ – 24″ | Upto 20 mm | |
| L-SAW | 400-1400mm | 16” -56” | Upto 60 mm | PSL-1, PSL-2, upto X80 Grade (L245 to L555) |
| Helical/ Spiral-SAW | 500-2500mm | 20” -100” | Upto 25 mm | PSL-1, PSL-2, upto X80 Grade (L245 to L555) |
High Pressure GRE
- API 15HR / API 15LR certified
- Pressure rating 3.5 Mpa to 25 Mpa
- Amine cured pipes
- Down hole Casing and Tubing
- Down hole Casing and Tubing
- Pipe diameter 1 ½”to 24”
- Anhydride cured pipes
- Working temperature 115 deg C.
- Corrosion resistance
- Corrosion resistance
LLTRP
- API 15S Certified
- API 17J Certified
- Diameter ranges 50mm -200mm (2-8 inch) & operation pressure up to 32 MPa (4640psi).
- High operation temperature up to 110°C
- Reinforcement layer - Glass fiber, Aramid fiber, Steel wire, Steel strip.

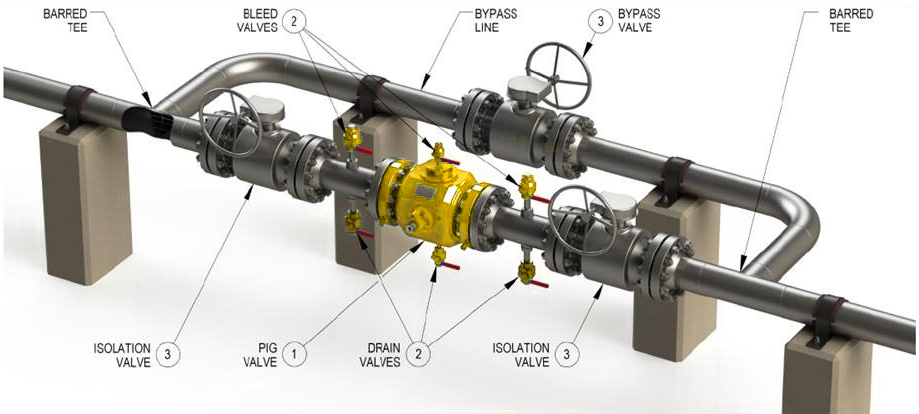

Pig Valves
As “pig valve” is different technology than the conventional pigging, it’s a simple valve designed especially for pig launching and receiving. It has its advantages as listed below
- Reduces emissions of greenhouses gases during venting of barrels in line with latest objectives of Oil & Gas companies to reduce gas emissions
- Reduces CAPEX the requirement of field infrastructure, decreases field construction time, reduces the space requirement for the pigging arrangement.
- Can be installed for old lines where earlier conventional pigging was not installed.
- Functionally simple design minimizes training and maintenance costs.
- Enhance the safety for operating personnel. Removing the possibilities of HSE incidents (pigging operators standing on the line of fire and kit by the pressured pig or receiver door) which has occurred in many fields. In addition to reduce the risk by the reduction of pigging technician required in the crew.
- Improved with integrity because less possibility of corrosion and need to do the routine inspection.
